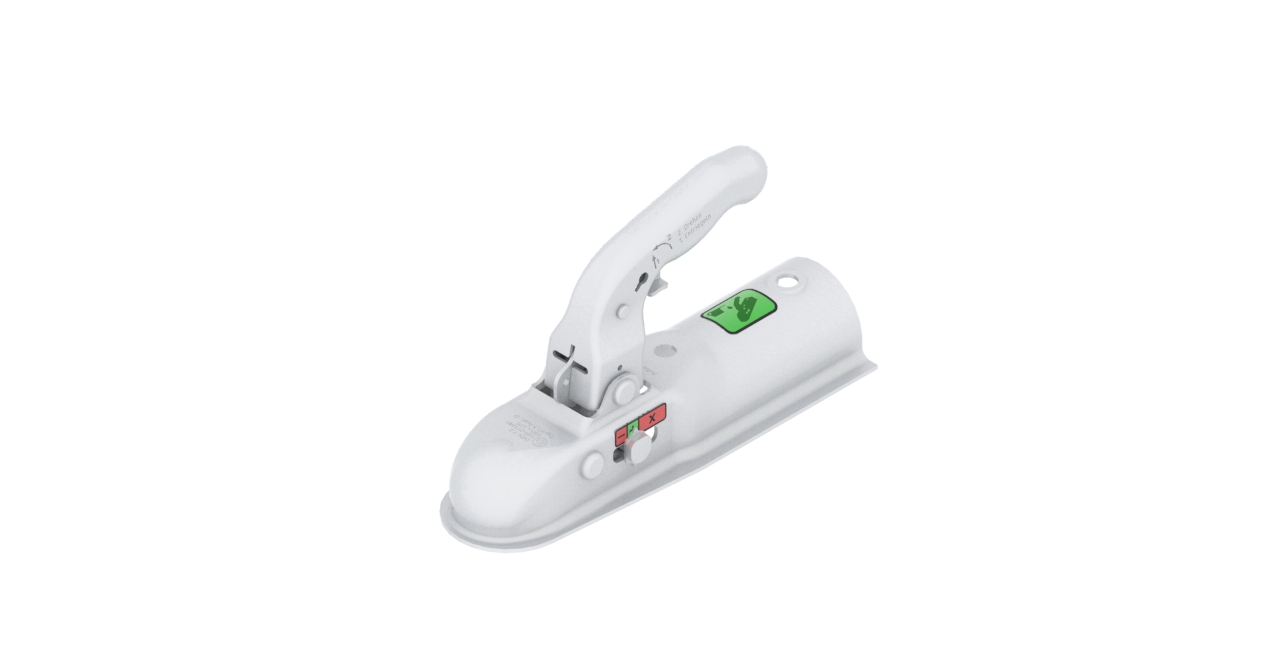

Coupling heads 750kg round shaped

*The image is only an illustration, please contact us for more information.

Product number	Product code with 7-pole plug holder	Product code with 13-pole plug holder	Product name	Load capacity	Dimension of holes for screws	Distance between holes	Hole position	Drawbar	Drawbar dimension	Ball size
6E0083.023	6E0083.223	6E0083.823	UH K7,5CN3 D12,5/90	750 kg	M12	90mm	on the top	round shaped profile	Ø50mm	ISO50
6E0083.029	6E0083.229	6E0083.829	UH K7,5DN3 D12,5/90	750 kg	M12	90mm	on the top	round shaped profile	Ø60mm	ISO50
6E0083.033	6E0083.233	6E0083.833	UH K7,5EN3 D12,5/90	750 kg	M12	90mm	on the top	round shaped profile	Ø70mm	ISO50
6E0083.037	6E0083.237	6E0083.837	UH K7,5EN3 2″ D12,5/90	750 kg	M12	90mm	on the top	round shaped profile	Ø70mm	2″
6E0299.001	is part of	–	UH K7,5DN3 2″ D12,5/90 + 7p plug holder	750 kg	M12	90mm	on the top	round shaped profile	Ø60mm	2″
