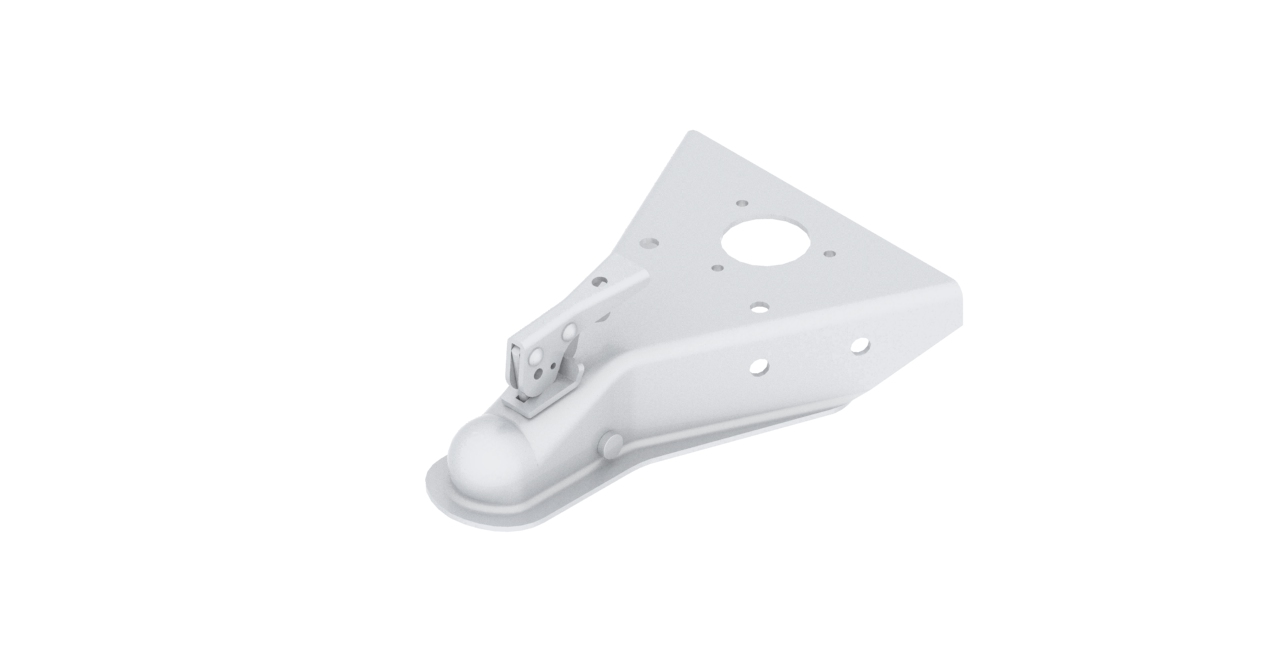

Coupling heads 5000lbs A-frame
*The image is only an illustration, please contact us for more information.
| Product number | Product name | Load capacity | Diameter of the holes | Distance between holes | Hole position | Drawbar | Drawbar dimension | Ball size |
| 3KF410.001 | UH C 5000 2″/50° FeZn12/Cn/T2 | 5000 lbs | Ø0,55″ | 2,73″ | on the side | A-frame | 50° | 2″ |
| 3KF410.002 | UH C 5000 2″/50° RAL9005 | 5000 lbs | Ø0,55″ | 2,73″ | on the side | A-frame | 50° | 2″ |
| 3KF405.001 | UH C 5000 2″/50° RAL9005 fine structure | 5000 lbs | Ø0,55″ | 2,73″ | on the side | A-frame | 50° | 2″ |
